CODING AND MARKING SYSTEMS
INKJET & LASER CODERS
Designed for high speed applications, printing 1, 2, 3, 4 or 5 lines of text, barcode and graphics. Mark and code 2-3 shifts per day, 5-7 days per week 6,000-9,000 hour annual operation. Includes specialist models for unique applications from food grade, to high speed and micro.
Features:
IP65 Protection
Print 1-5 Lines,32 Pixels
High Memory Storage
Crafted Performance
Clear and Simple Operation
On-the-fly-ink and Solvent Filling
Large volume tanks and Temperature sense Ventilation
Industrial Enclosure
Universal Electronics sync capability
Easy to use Visual Editor
Universal feature
Premium print Quality
Wide selection of Inks

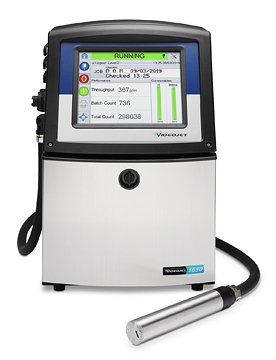

This continuous inkjet printer is engineered for more demanding coding and marking applications where a combination of speed and throughput require a high utilisation solution. In addition to delivering an Up time Advantage, the 1650 provides advanced features to help reduce operator error and tools to help improve Overall Equipment Effectiveness (OEE).
Specification Value
Print heads -1
Inks - Dye Based
Maximum Lines of Print -5
Maximum Line Speed(1)- 293 m/min (960 ft/min)
Environmental Protection - IP65
Core Life (Maintenance Interval) Up to 14,000 hours
Umbilical Length 3 m (9.8 ft) optional 6 m (19.6 ft)
Message Storage Capability 250
Smart Cartridge Included
Plug and Play Print head Modules Included
USB Included
Communications Ethernet (standard)
Message management via USB
Expanded I/O Ports and Control
Display (User Interface) based 10.4 inch color touchscreen
