TABLE TOP LABEL DISPENSERS
TABLE TOP LABEL DISPENSERS

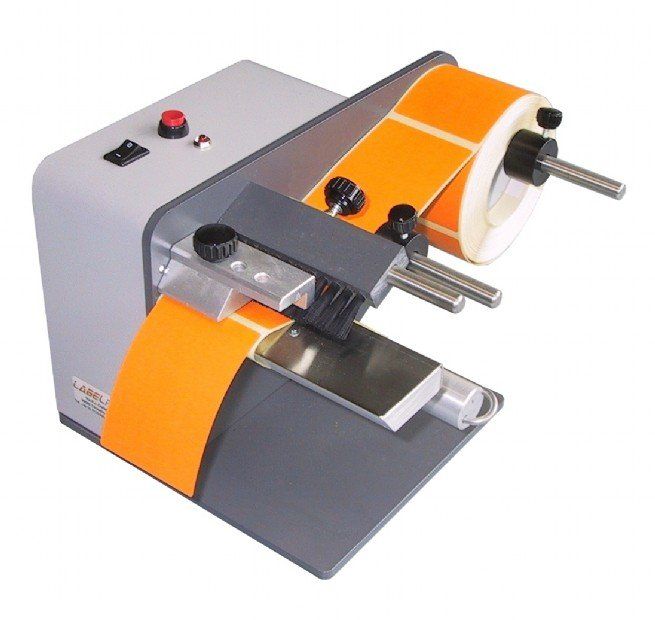

This is a dispenser for self-adhesive labels not transparent fed in rolls very compact and lightweight. The labels are read by two self-learning sensors microprocessor controlled.
They can automatically identify the difference in transparency existing between the label and the paper support, hence presenting the label on the peeler bar almost fully peeled off. After the removal of a label from the paper support, the next label will stick out automatically. Furthermore, the control card will stop the motor rotation when the roll is over or in case of paper tear, and afterwards it will
Standard features:
Maximum label width: 100 mm
Minimum label width:
15 mm
Maximum label lenght: 300 mm
Minimum label lenght: 15 mm
Roll diameter: 180 mm
Core diameter: 25 mm
Supply voltage: 230 Vac-50Hz
Power consumption: 30W
Overall dimensions: 158x250x167 (H)
Weight: Kg 3,2

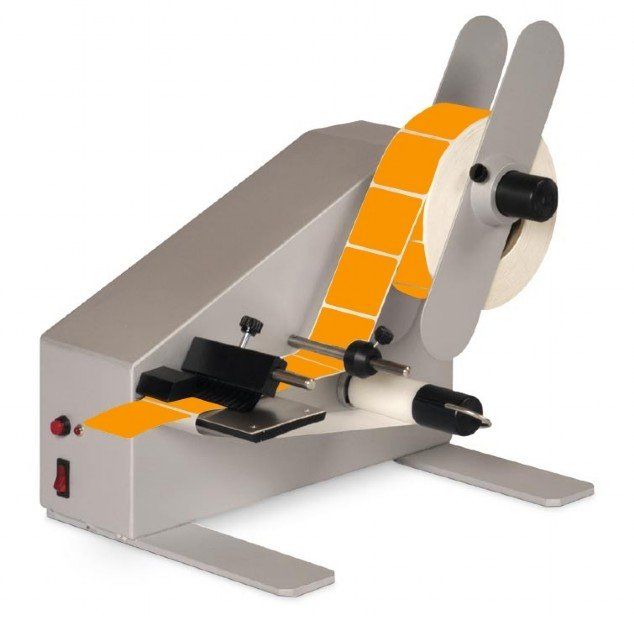

Developed to suit industrial application, it is a semi-automatic dispenser for self-adhesive labels fed in rolls. Fully made of steel, it is easy to operate, is flexible and suitable for any type of label commonly in use.
Available in 2 widths:
- up to 100 mm
- up to 200 mm
The roll holder can be adapted to any core type and can accept rolls up to 300 mm in diameter, thus offering long operation autonomy.
