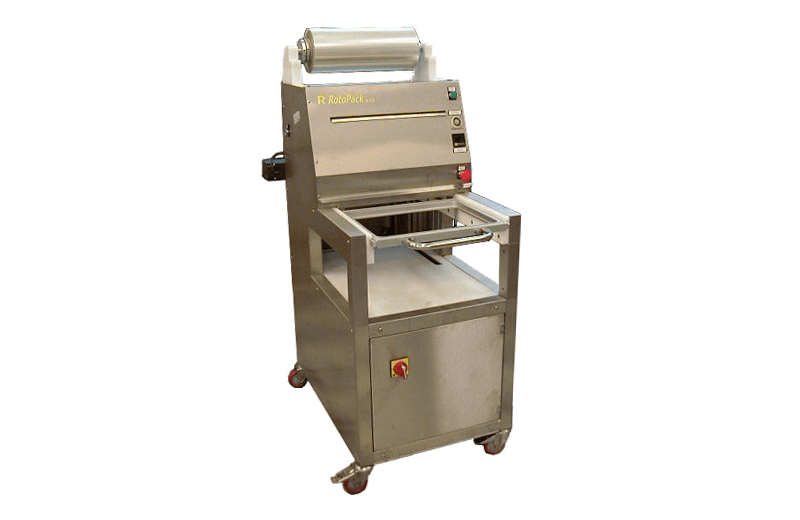

SEMI AUTOMATIC TRAY SEALERS

SPR

  • Semi automatic sealing machine for preformed trays in PP, PE, PS, PET, AL etc.;
  • Teflon coated sealing plate;
  • Profile cutting to the tray size;
  • Digital temperature controller with PT 100 probe;
  • Structure in stainless steel, aluminium and polythene
  • Moulds made on tray samples for any shape
  • Fast tool change



Optional:

  • Larger version to seal trays up to mm. 410 x 340 x h. 120
  • Automatic drawer injection/ejection
  • Vacuum sensor
  • Inside compressor
  • Photocell for printed film


POWER230 V. - 50/60 Hz P+N+PEPOWER CONSUMPTION2 KWAIR SUPPLY3,5 NL/ciclo

WEIGHT Kg. 100MAX.

CONTAINER DIMENSION mm. 350 x 270 x 240

MACHINE DIMENSIONS mm. 570x800x1400MAX.

FILM WIDTH mm. 400

PRODUCTIVITY VAC-GAS/ONLY SEALING5 cycles/min


  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

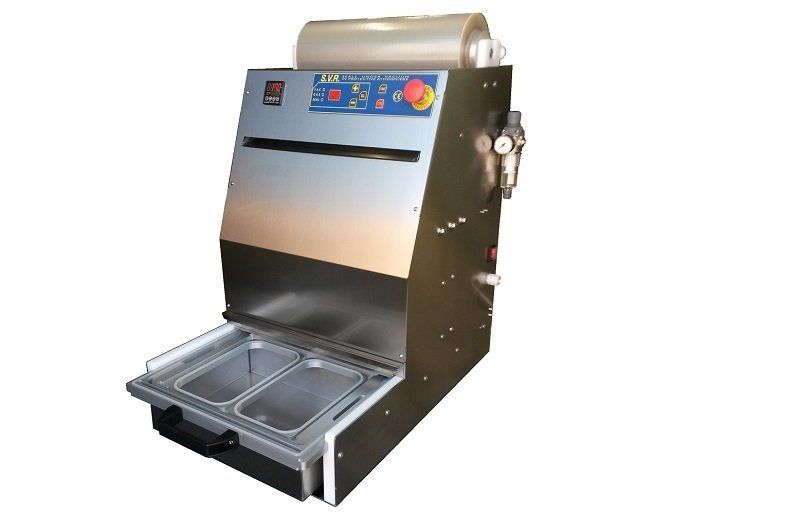

SVR BASIC

  • Semi automatic TABLE TOP vacuum/MAP sealing machine for performed trays in PP, PE, PS, PET, AL etc.
  • Teflon coated sealing plate;
  • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening;
  • Digital temperature controller with PT 100 probe;
  • 10 storable programs (possibility to set time for sealing, vacuum, gas and pause);
  • Extra vacuum and extra gas functions;
  • Pressure sensor for vacuum and gas;
  • Structure in stainless steel, aluminium and polythene;
  • Moulds made on tray samples for any shape ;
  • Tools easy to change and interchangeable with mod. SVR, TURN, RAPIDA + and EASY;


Optional:

  • Special vacuum pump for gas mixtures with high % of oxygen;


POWER : 230 V. - 50/60 HZ P + N + PEPOWER CONSUMPTION 2,5 K W

AIR SUPPLY5 NLAIR PRESSURE6 bar

WEIGHT Kg. 100MAX.

CONTAINER DIMENSION mm.350x270xh.100

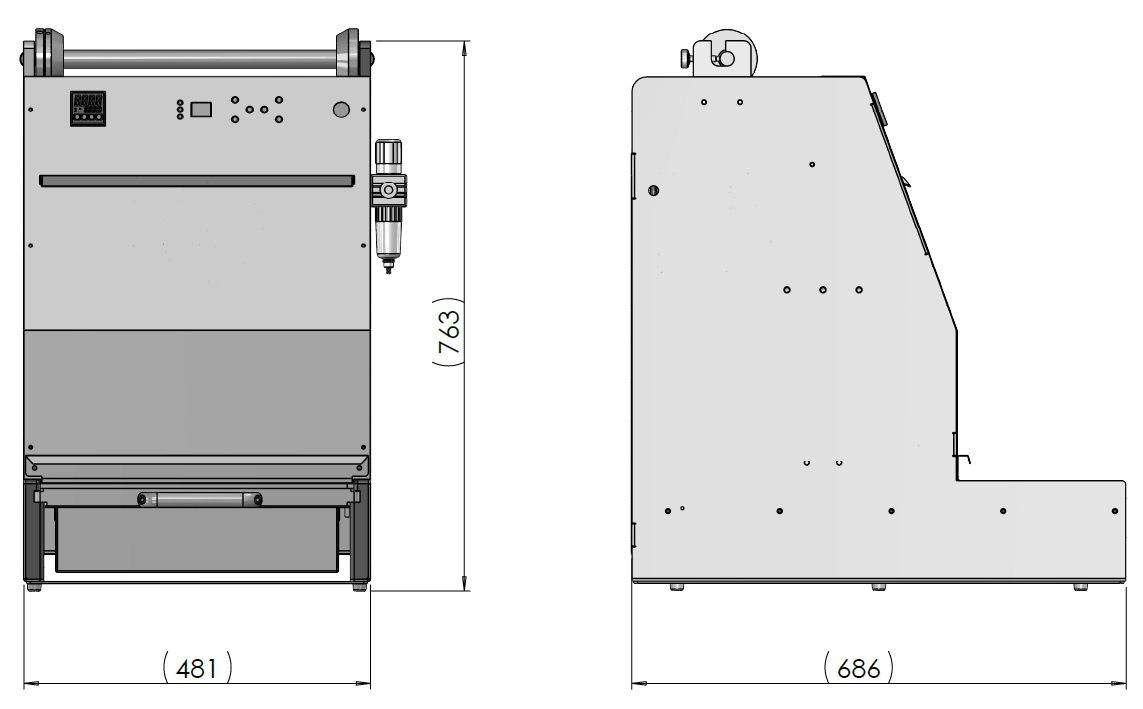

MACHINE DIMENSIONS mm. 500 x 690 x h.780

VACUUM PUMP 12 m3 MAX.

FILM WIDTH 400 mm.

PRODUCTIVITY VAC-GAS/ONLY SEALING2/5 cycles/min

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

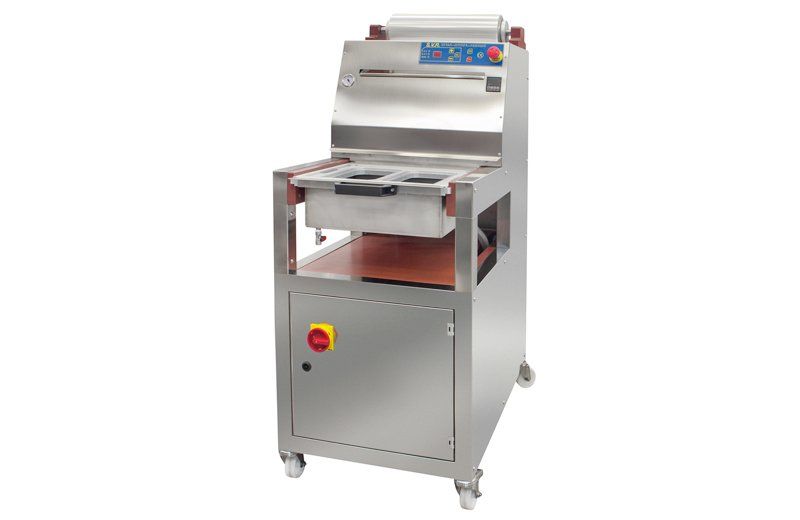

SVR

  • Semi automatic vacuum/MAP sealing machine for performed trays in PP, PE, PS, PET, AL etc.
  • Teflon coated sealing plate;
  • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening;
  • Digital temperature controller with PT 100 probe;
  • 10 storable programs (possibility to set time for sealing, vacuum, gas and pause);
  • Extra vacuum and extra gas functions;
  • Pressure sensor for vacuum and gas;
  • Structure in stainless steel, aluminium and polythene;
  • Moulds made on tray samples for any shape ;
  • Tools easy to change and interchangeable with mod. SVR BASIC, TURN, RAPIDA + and EASY;

Optional:

  • Version “only sealing” (mod. SPR);
  • Larger version to seal trays up to 410 x 340 X 120 mm.;
  • Possibility to seal trays up to h 230 mm.;
  • Special vacuum pump for gas mixtures with high % of oxygen;
  • Automatic drawer injection/ejection;
  • Inside compressor;
  • Photocell for printed film;


POWER 230 V. - 50/60 HZ P + N + PEPOWER CONSUMPTION 2,5 KW.

AIR SUPPLY5 NL/cycle

WEIGHT Kg. 150MAX.

CONTAINER DIMENSION mm.350x270xh.120

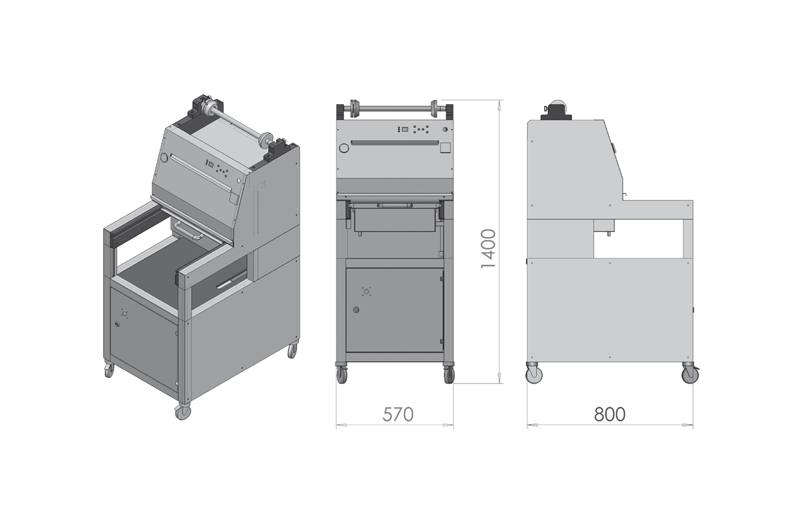

MACHINE DIMENSIONS mm.570x800xh. 1400

VACUUM PUMP25 m3 MAX.

FILM WIDTH mm. 400

PRODUCTIVITY VAC-GAS/ONLY SEALING

3/5 cicli/min
