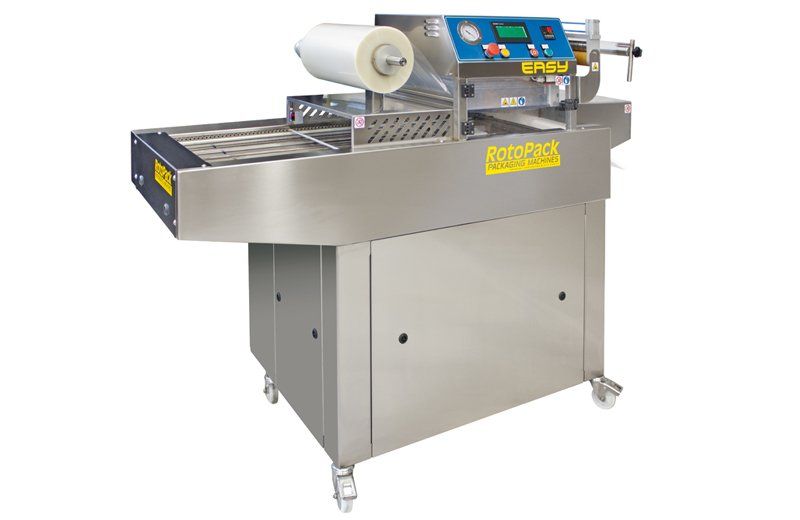

EASY

• Automatic vacuum /MAP sealing machine for preformed trays in PP, PE, PS, PET, AL etc.
• Tools easy to change and interchangeable with mod. SVR BASIC, SVR, SVR TURN and RAPIDA +;
• Compact size;
• Teflon coated sealing plate;
• Digital temperature controller with PT 100 probe;
• Pressure sensor for vacuum and gas;
• Moduls made on tray samples for any shape
• Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening
• Extra vacuum and extra gas functions
• Touch screen with 10 storable programs;
• Structure in stainless steel and aluminium;

Optional:

• Version “only sealing”;
• Special vacuum pump for gas mixtures with high oxygen%;
• Photocell for printed film

POWER 400 V - 50/60 HZ 3P+N+PEPOWER CONSUMPTION3,5 KW

AIR SUPPLY20 NI/ciclo - 6 bar

WEIGHT Kg. 300MAX.

CONTAINER DIMENSION 360 x 270 x h.100 mm

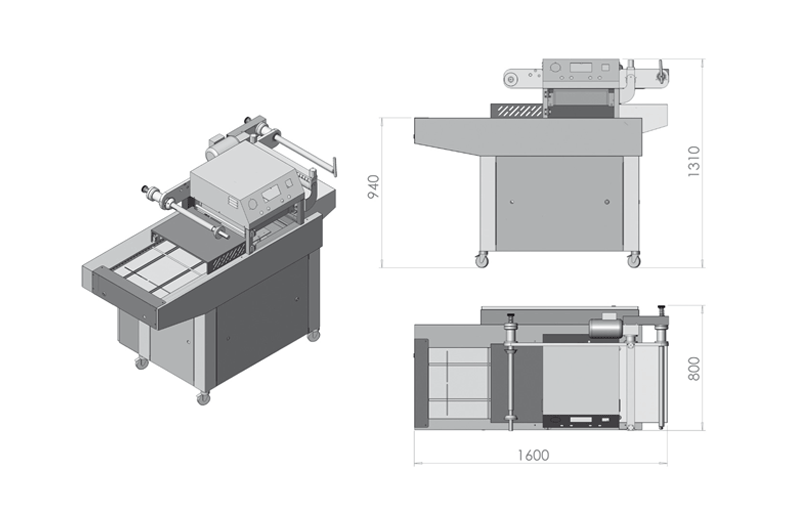

MACHINE DIMENSIONS Cm. 160 x 080 x h.131

VACUUM PUMP60 M3MAX

FILM WIDTH 430 mm.

PRODUCTIVITY VAC-GAS/ONLY SEALING5 /12 cicli/min

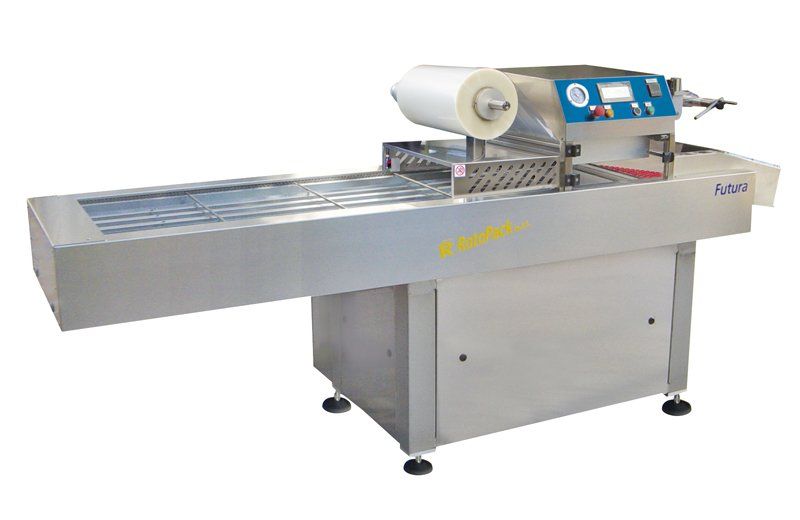

FUTURA

• Automatic vacuum/MAP sealing machine for performed trays in PP, PE, PS, PET, AL etc.
  Teflon coated sealing plate;
• Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening;
• Moduls made on tray samples for any shape;
• Touch screen with 10 storable programs;
• Digital temperature controller with PT 100 probe;
• Extra vacuum and extra gas functions;
• Fast tool change;
• Pressure sensor for vacuum and gas;

Optional:

• Version “only sealing”;
• Special vacuum pump for gas mixtures with high oxygen%;
• Photocell for printed film;
• Tray denester;
• Filling systems



POWER400 V. - 50/60 HZ 3P+N+PE

POWER CONSUMPTION4,5 KW

AIR SUPPLY20 NL/ciclo

WEIGHT Kg. 500MAX.

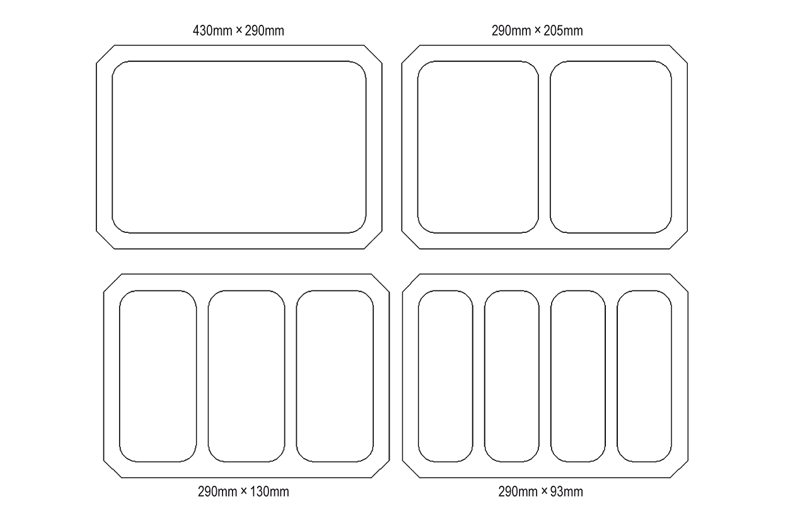

CONTAINER DIMENSION mm.430x290xh. 100

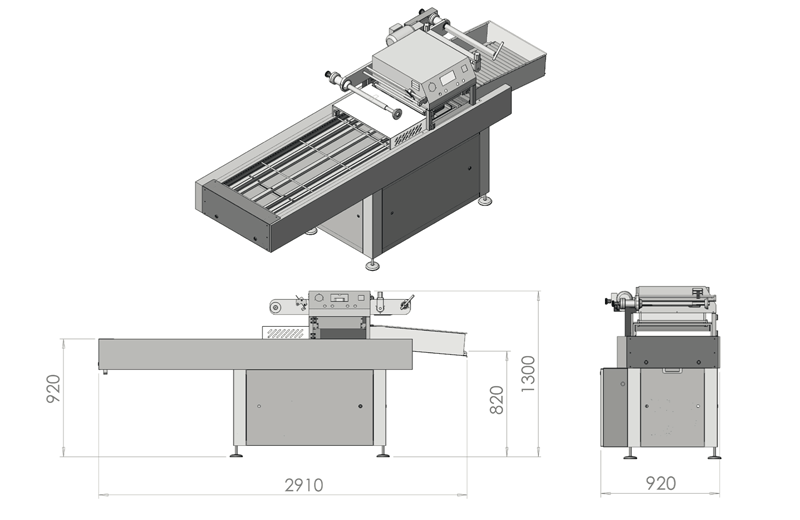

MACHINE DIMENSIONS mm.2750x920xh. 1300

VACUUM PUMP105 m3 MAX.

FILM WIDTH mm. 500

PRODUCTIVITY VAC-GAS/ONLY SEALING5/12 cicli/min

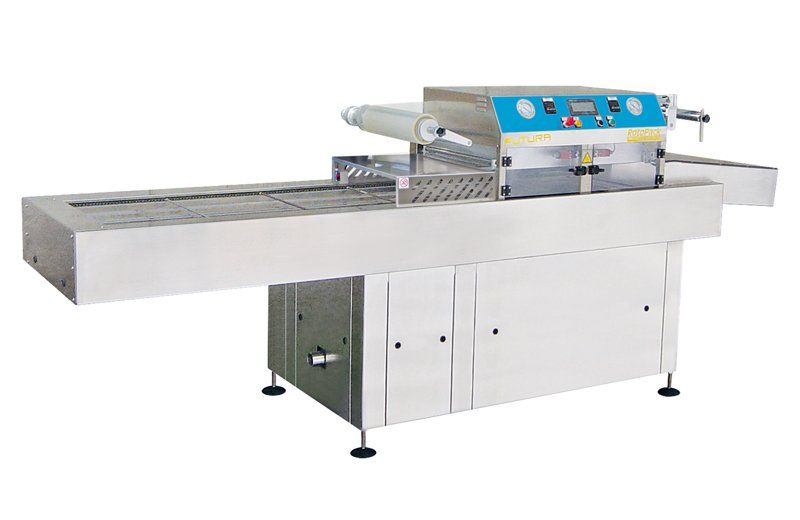

FUTURA DOUBLE

• Automatic vacuum/MAP sealing machine with double chamber for preformed trays in PP, PE, PS, PET, AL etc.;
• Possibility to use the two chambers with different tools;
• Teflon coated sealing plate;
• Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening;
• Digital temperature controller with PT 100 probe;
• Moduls made on tray samples for any shape;
• Extra vacuum and extra gas functions;
• Touch screen with 10 storable programs;
• Structure in stainless steel and aluminium;
• Fast tool change;
• Pressure sensor for vacuum and gas;

Optional:

• Version “only sealing”;
• Special vacuum pump for gas mixtures with high oxygen%;
• Photocell for printed film;
• Tray denester;
• Filling systems

POWER400V -50/60Hz 3P + N + PE

POWER CONSUMPTION5,5 KW + 3,5 kw

AIR SUPPLY40 Nl/cycle

AIR PRESSURE 6 bar

WEIGHT600 kg MAX.

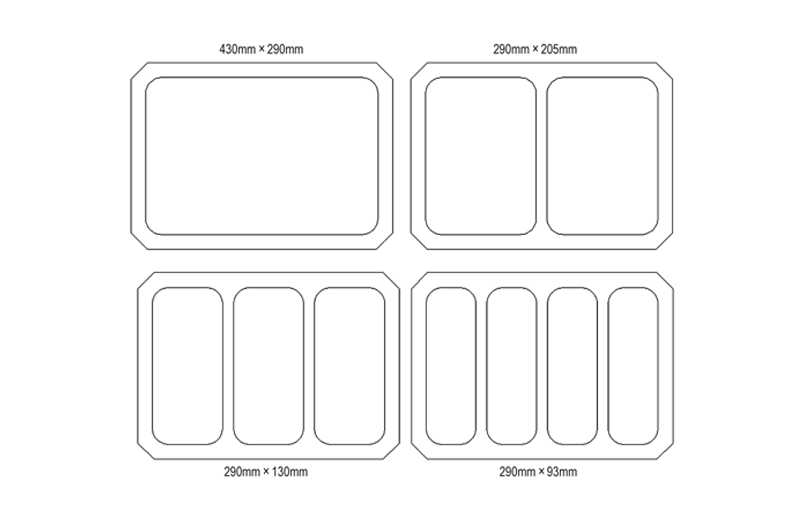

CONTAINER DIMENSION mm 430x290xh100 (2x)

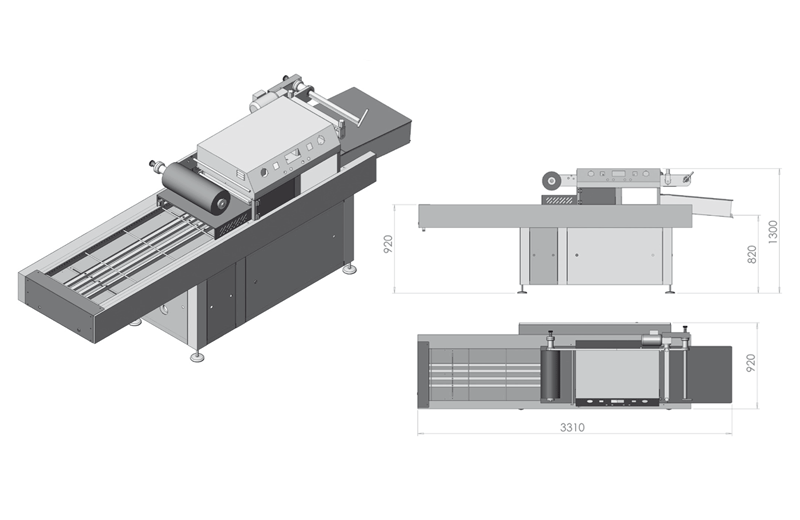

MACHINE DIMENSIONS Cm.331x92xh. 130

VACUUM PUMP 205 M3 MAX.

FILM WIDTH 500 mm.

PRODUCTIVITY VAC-GAS/ONLY SEALING8 / 20 cycles/min
